Custom screw-cap grip ring with wings

Name: Custom screw-cap grip ring with wings
Brand: BuildYour3D
SKU: deckel_drehhelfer
Price: 3.66 EUR
Availability: InStock

Add grip to a screw cap with a ribbed TPU ring and two wings. Match contact diameter, height and wing dimensions to the particular lid you want to turn.

0 Likes

★★★★★

0.0/5 · 0 Ratings

🧩 Configure now ← Back to category

parameters

7 adjustable

Variants

0 ideas

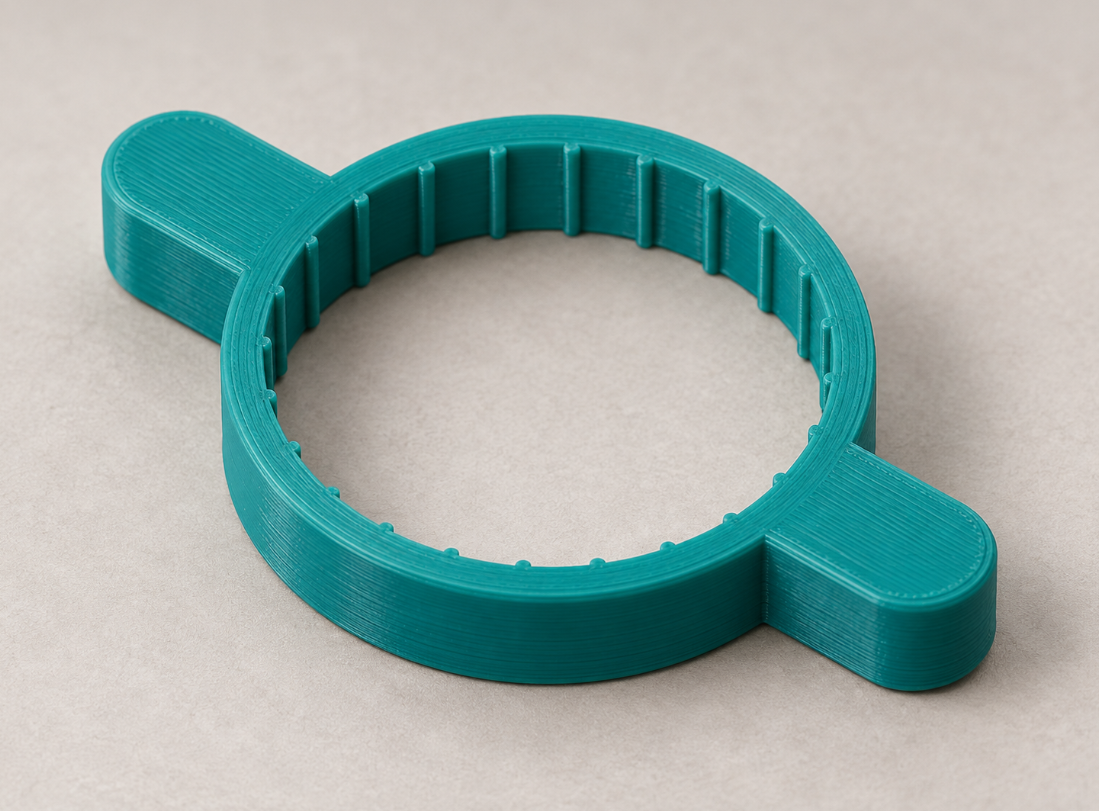

A flexible ring open at both ends surrounds a screw cap. Rounded internal ribs transmit light hand force, while two wings enlarge the grip. Contact diameter is measured between the inward rib tips. What you can customise: Adjustable: Clear diameter between rib tips. Adjustable: Grip ring height. Adjustable: Ring wall outside ribs. How to measure: 1. Measure cap outside diameter across its ribs in several places. 2. Choose diameter between inward rib tips; determine TPU fit with a short trial ring. 3. Keep grip height within the cap sidewall and check wing clearance. Assembly and trial fitting: 1. Print flat in TPU and clean the ribs. 2. Fit without excessive force; the ribs must contact the cap. 3. Hold the container with one hand and turn the wings gently. 3D printing notes: Start with approximately 95A TPU, flat with four walls. Grip and flexibility depend on filament and print settings. Fit and included geometry: Grip aid for ordinary screw caps only. Not a vacuum release, guaranteed stuck-lid opener or modification of child-resistant or safety closures. Additional items required: Matching screw cap and container are separate; no additional fittings.

🧩 Configure now

Recommendations

Best from Haushalt

View all →

No additional products found in this category.

FAQ

Frequently asked questions

What is Configurable 3D component intended for?

Configurable 3D component is a configurable model in the Haushalt category. When an off-the-shelf part does not fit, configure this parametric configurable 3d component for your project: adjust the dimensions, check the preview, download the STL or order the 3D… It is suitable as a starting point for 3D printing or technical review.

Which dimensions can I adjust for Configurable 3D component?

The available input fields define the dimensions of the generated model, for example Specific dimension, Height, Wall thickness, Radius, Length, Width. Please check the preview and the displayed overall dimensions before ordering.

Is the STL generated from my inputs?

Yes. The STL is generated from the entered parameters and prepared for download or email delivery after payment.

Can I open the STL in Bambu Studio, Cura or PrusaSlicer?

The generated STL is suitable as a starting point for common slicers. Please review orientation, scale, material and print settings in your slicer software.

Do I need to check dimensions and tolerances before buying?

Yes, please check dimensions before ordering. Fit, strength and tolerances depend on material and print settings; the preview and overall dimensions help with verification.

Which material is suitable for Configurable 3D component?

PLA is useful for samples and simple parts, PETG for tougher applications and ASA for outdoor or higher-temperature use. Load, tolerance and print orientation matter.

Can I download Configurable 3D component as an STL or order it printed?

Yes. After configuration you can use the generated model for STL download or continue to the 3D printing order flow with price calculation.

What are typical uses for Configurable 3D component?

Typical uses include custom dimensions, repairs, prototypes and mounting aids in the Haushalt category. For functional parts, always verify load and fit in the final application.
