Spare part / Special part / Hydraulics / BSPP G / 3D Print
Doppelgewinde Adapter BSPP G konfigurieren und als Ersatzteil 3D drucken lassen
No suitable adapter in the DIY store? No standard part found in the store? Or is your old part defective, nicht more verfuegbar or are difficult to obtain? Then you can order your Doppelgewinde adapter BSPP G with your own dimensions and configure it as individuallyes spare part or Sonderteil 3D have printed.
Particularly useful for parts that are no longer available, special dimensions, repairs and technical prototypes.
If you can't find the right part anywhere, you don't need to compromise
This is often the problem in practice: An adapter is needed, but the right part is not available in the DIY store, not available in the right size in online shops or the original spare part is discontinued, defective or only available with long delivery times.
With a parametrisch konfigurierbaren Doppelgewinde adapter instead, you can create your own model based on your required dimensions. This will help you find a suitable solution much faster - especially then, wenn Standardteile nicht weiterhelfen.
What is it?

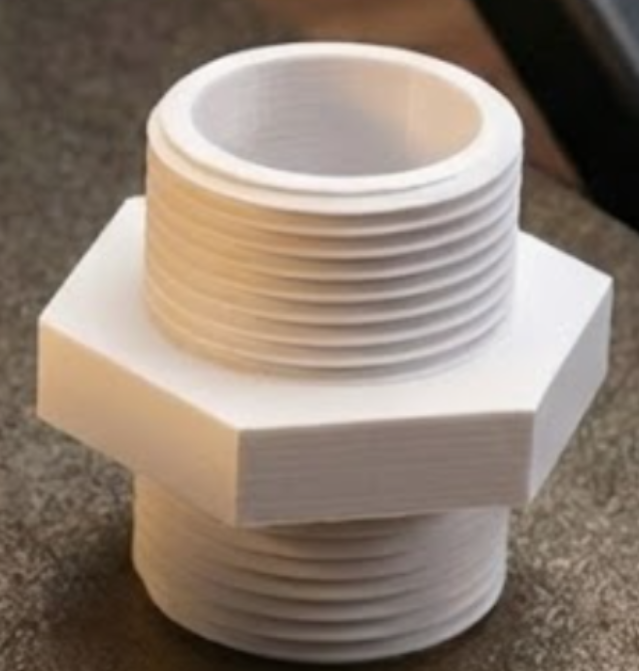

A Doppelgewinde adapter BSPP G is a component with two external threadswhich is used to connect, extend or adapt threaded connections. In this version, the adapter also has a Hexagon in the center for tool holding and a through-bore.
This combination is particularly interesting when an existing part needs to be replaced or a standard adapter does not fit. Instead of searching for a Compromise solution, you can customize the relevant dimensions directly and have an individual part made from it.
Fuer wen ist dieser adapter interessant?
This article and the associated configurator are aimed at all those who do not just look for any adapter, but exactly the right. Typical cases are:
- You findest no passendes part im Baumarkt
- A spare part ist nicht more verfuegbar
- Ein vorhandenes part ist defekt or gebrochen
- You brauchst ein Custom sizethat does not exist as standard
- You willst eine technische Idee, Reparatur or Konstruktion fast testen
- You benoetigst einen adapter fuer prototype, Vorrichtung or small batch
This is exactly where a konfigurierbarer 3D printing adapter its strengths: You are not guided by what is currently in stock somewhere, but by what you really need.
Why ist ein konfigurierbarer adapter oft besser als ein Standardteil?
Standard parts are practical - but only if they really fit. In many applications, however, at least one detail is not right: thread length, key width, bore, height or the combination of two different sides.
A parametrischer Doppelgewinde adapter solves exactly this problem. You configure the component according to your requirements and receive a geometry that is intended for your application - not for the average case.
Which Vorteile hat der Doppelgewinde adapter BSPP G?
- Two BSPP G male threads freely configurable
- Ideal als spare partwhen standard parts are not available
- Yourchgehend hohl fuer Medien, Luft, Kabel or technische Yourchfuehrungen
- Hexagon in the center fuer eine cleane Werkzeugaufnahme
- Suitable dimensions instead of a compromise solution
- Sinnvoll fuer Reparatur, prototypes and Sonderteile
- Online configurable and fuer den 3D printing geeignet
Typical real-world applications
The adapter is not only interesting for classic hydraulic or pneumatic applications. Especially in everyday life, there are many situations in which an individual connection is required:
- Hydraulik- and Pneumatik-Anschluesse
- Rohr- and Leitungssysteme
- Translations of threaded connections
- Uebergangs- and Zwischenstuecke
- Reparaturen an aelteren Maschinen or Geraeten
- Ersatz fuer nicht more lieferbare Originalteile
- Werkstattloesungen, fixtures and DIY-Konstruktionen
- Funktionsmuster and Passprtop im 3D printing
The real strength promise: your part to your dimensions
The biggest advantage is not only the adapter itself, but the possibility of using it an your Anforderungen anzupassen. Instead of buying a similar part and changing it mechanically later, you can specify the required values directly in the configurator.
This makes the process particularly attractive for all those who want a spare part nach Mass or a individuallyes 3D-printedes part need.
Which parameters lassen sich configure?
According to the product structure you have 7 zentrale parameters which can be customized directly:
- Gewinde-Code Seite A (bottom)
- Thread length side A (mm)
- Gewinde-Code Seite B (top)
- Thread length side B (mm)
- Hexagon key width (mm)
- Hexagon height (mm)
- Yourchgangsloch (mm, 0 = automatisch)
This not only allows you to configure the adapter in a technically suitable way, but also functionally adapt them to your application.
Why der Sechskant in der Mitte in der Praxis so wichtig ist
At first glance, the hexagon seems like a small detail. However, it is extremely important in use. Without a clear tool holder, adapters are often difficult to fit, tighten or later loosen again. The middle Sechskant macht aus einem simpleen Verbinyoungsstueck ein praxistaugliches part.
Yourchgehend hohl: more als nur ein Gewindeverbinder
The through-hole considerably extends the range of applications. It is interesting for fluids, air, technical feedthroughs, cables or other functional applications. This makes the adapter not just a connection, but often a central element within the entire design.
What tun, wenn das Originalteil kaputt ist?
This is exactly when 3D printing becomes particularly exciting. Many repairs do not fail this is not because a component is complicated - but because it is no longer available as a standard part. The manufacturer no longer stocks it, the thread does not fit exactly or the required combination simply does not exist on the market.
In solchen Faellen ist ein konfigurierbares Modell ein sehr starker Weg: You use the defective or missing part as a guide, enter the required dimensions in the configurator and have a suitable spare part manufactured from them.
Is 3D printing useful for such an adapter?
3D printing is particularly useful for prototypes, Fitting tests, Repair attempts, Custom parts and individuallye Einzelanfertigungen. If a part is not freely available, is needed quickly or is needed in a when special geometry is needed, a 3D printed model offers a clear advantage.
Especially for development, workshop solutions, technical tests and non-standardized applications, this is often the fastest and most pragmatic way to find the right component.
So denkst you bei der Konfiguration richtig
Anyone creating a spare part or special part should not just look at the thread. The interaction between the two is always important:
- matching thread on both sides
- sufficient thread length
- practical key width for assembly
- sensible height of the hexagon
- funktional passender bore
It is precisely this combination that determines whether the part only fits in theory or works really well in practice.
Why Leser bis hierhin bleiben - and warum sie dann klicken
Anyone looking for an adapter like this is usually not just looking for information, but a Solution. The real strength of your offer is therefore, not only the product itself, but the possibility of moving from a problem to a solution directly to a specific component:
- part not foand
- mass bekannt or ableitbar
- online configure
- 3D printed
This is exactly what makes the call to action credible: the user does not click on any store button, but on the next logical step to his individual part.
No standard part found?
Create your double thread adapter with your own dimensions now
If nothing suitable is available in the DIY store, online store or spare parts catalog, kannst du hier direkt dein eigenes Modell konfigurieren und 3D drucken lassen.
Fazit: Wenn es das part nicht gibt, konfigurierst you es simple selbst
This is the real added value of this offer: You are no longer dependent on whether a suitable adapter happens to be available on the shelf, in the DIY store or somewhere in a catalog.
With the Doppelgewinde adapter BSPP G you can create a solution that is based on your needs - not on a standard measure. This is particularly valuable for spare parts, defekte or nicht more lieferbare parte, Special dimensions, Repairs and technische Einzelanwenyoungen.
So if you're looking for a part that you can't find anywhere that fits, the next sensible step is not to keep looking, but to gezieltes Configure.
Jetzt deinen Doppelgewinde Adapter BSPP G konfigurieren
Enter your required dimensions directly and get a customized spare part, Produce special parts or test models using 3D printing - especially when no suitable adapter is commercially available.
Ideal for spare parts, repairs, special dimensions, prototypes and individual adapter solutions.
Frequently asked questions about the double thread adapter BSPP G
What is a double thread adapter BSPP G? ▾
A double thread adapter BSPP G is a connecting component with two external threads. It is used to connect or extend connections or to replace a missing or no longer available part.
When is an individually configured adapter useful? ▾
Especially when no suitable standard part is available in the DIY store or specialist shop is no longer available, a spare part is no longer supplied or you need a special size.
Can I enter my own dimensions? ▾
Yes, that's exactly what the configurator is for. You can set the relevant parameters customize and create your individual model.
Which parameters can I set? ▾
Adjustable are thread code A, thread length A, thread code B, thread length B, hexagon key width, hexagon height and the through hole.
Is the adapter hollow throughout? ▾
Yes, the bore is continuous and can be used for fluids, air, cables or other technical feedthroughs, depending on the application.
Is this also suitable as a replacement for defective or unavailable parts? ▾
Ja, genau dafuer ist ein konfigurierbares Modell besonders interessant: if an original part is defective, difficult to obtain or no longer available.
