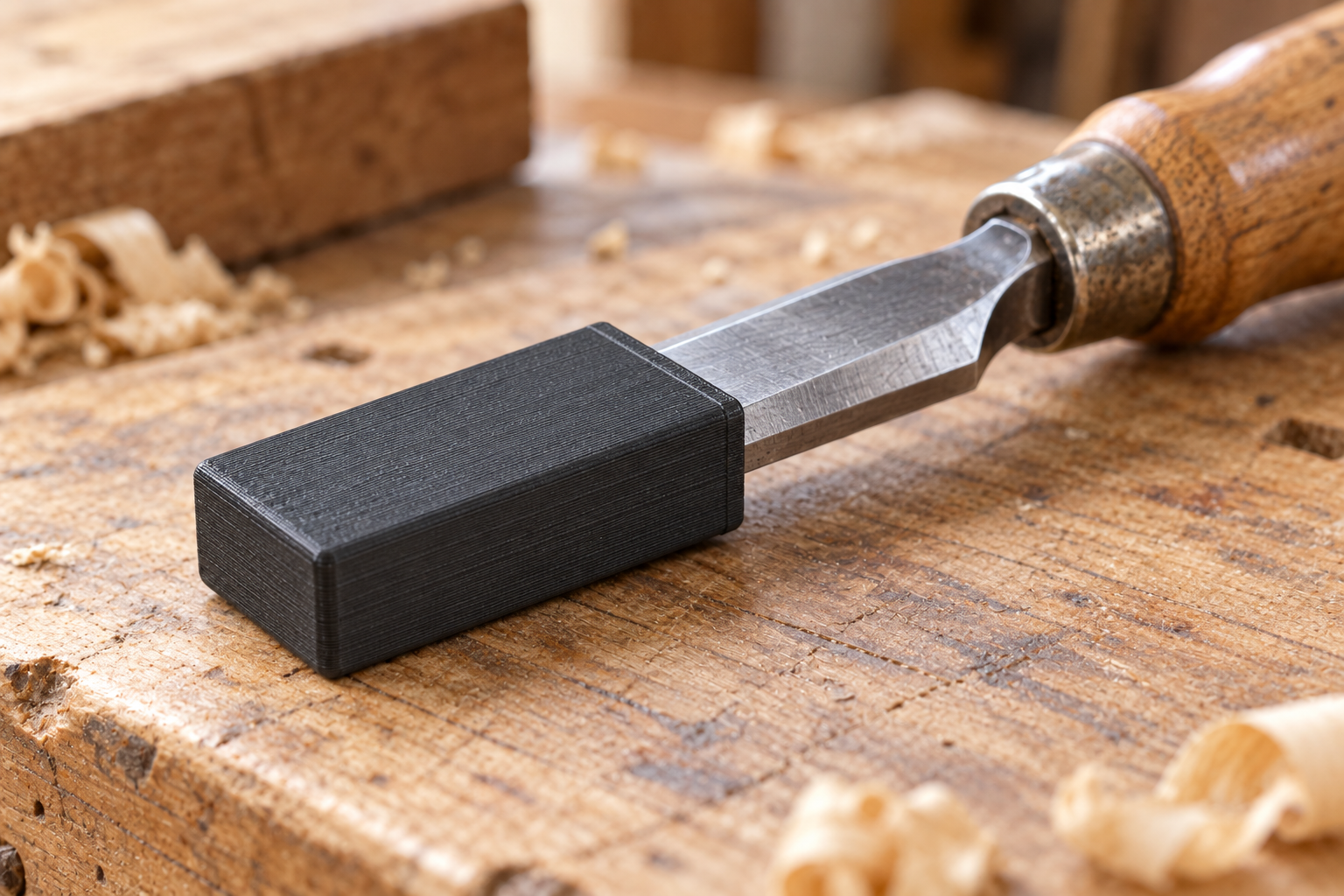

Dark TPU blade guard with a rectangular opening — AI visualisation.

Adapter

Chisel edge guard sized to your blade

Name: Chisel edge guard sized to your blade
Brand: BuildYour3D
SKU: stechbeitel_schneidenschutz
Price: 3.66 EUR
Availability: InStock

Replace a missing chisel guard: set clear width, thickness and insertion depth to the blade. A flexible TPU design for storing tools in a drawer.

0 Likes

★★★★★

0.0/5 · 0 Ratings

🧩 Configure now ← Back to category

parameters

5 adjustable

Variants

0 ideas

The chisel is sound but its cap is missing. This closed rectangular sleeve covers a straight edge and can fit older sizes or blades narrowed by sharpening. What you can customise: Customisable: Clear blade width including fit allowance. Customisable: Clear blade thickness including fit allowance. Customisable: Usable insertion depth. How to measure: 1. Measure blade width throughout the inserted region, not only at the edge. 2. Measure maximum thickness; establish TPU retention with a short trial print. 3. Choose insertion depth before the handle or shoulder. Inputs are finished inside dimensions with no automatic clearance. Assembly and trial fitting: 1. Deburr the opening and slide the guard onto the clean blade without force. 2. Check retention above a bench; resize a loose guard and never carry the tool by it. 3D printing notes: Use roughly 95A TPU, closed end on bed and opening up. Start with 0.2 mm layers, four walls and a brim if needed. Test hardness and fit. Fit and included geometry: For straight rectangular blades; no tested cut resistance and not PPE. Standard guards are inexpensive; unusual dimensions are the advantage.

🧩 Configure now
