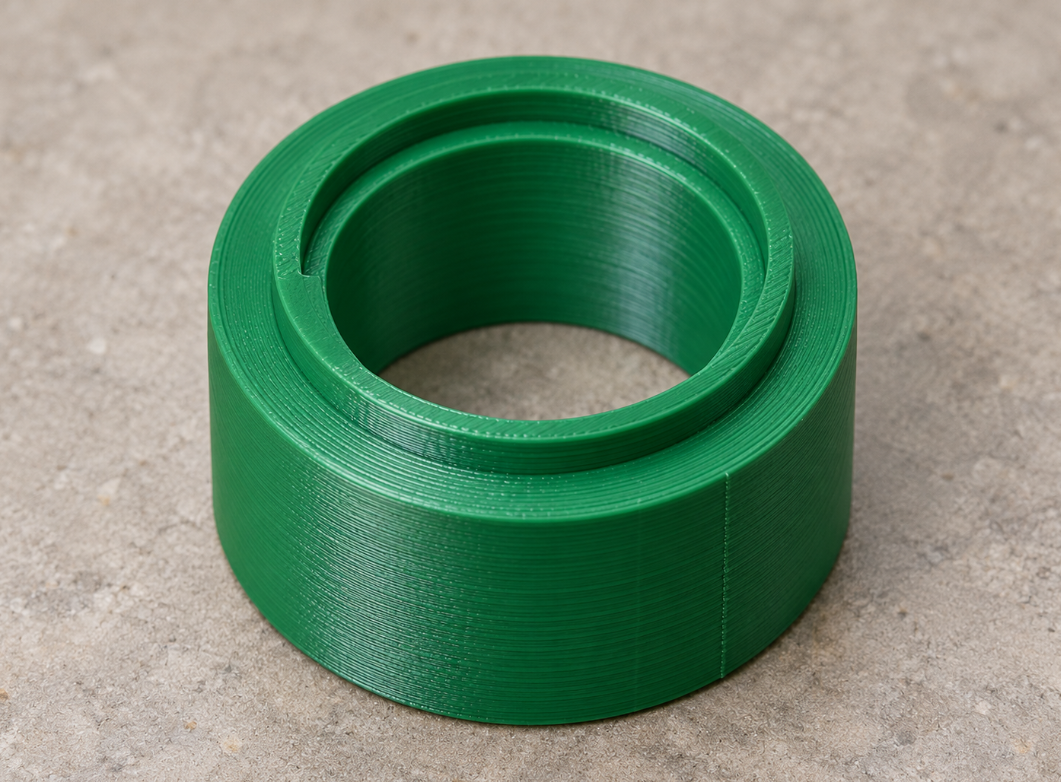

Custom fork dust seal seating ring

Name: Custom fork dust seal seating ring
Brand: BuildYour3D
SKU: staubdichtung_pressring
Price: 3.66 EUR
Availability: InStock

Seat a dust seal using a matching annular contact face: customise bore clearance, contact diameters and step height. A hand-press aid, not a hammer driver.

0 Likes

★★★★★

0.0/5 · 0 Ratings

🧩 Configure now ← Back to category

parameters

6 adjustable

Variants

0 ideas

The short ring has a wide grip and a narrower annular contact step. The step must bear on the seal’s supported outer seating area while clearing the delicate lip. Derive dimensions from the actual seal and fork housing. What you can customise: Adjustable: Through bore diameter. Adjustable: Contact outside diameter. Adjustable: Contact inside diameter. How to measure: 1. Measure outer and inner boundaries of the supported seal seating face. 2. Check clearance for the seal lip and any guiding components. 3. Check required step height and the fork maker’s permitted installation method. Assembly and trial fitting: 1. Print wide grip side on the bed and carefully smooth the contact edge. 2. Prepare housing and seal as the service manual requires; seat ring squarely. 3. Press evenly by hand only. Stop if the seal tilts or substantial force is needed. 3D printing notes: Tough PETG as a prototype material, 0.2 mm and six walls. Contact step up, no supports. Remove contact-surface burrs. Fit and included geometry: Not an impact tool and no validated load rating. Use only where the service procedure permits hand installation. Do not load the seal lip; an OEM driver may still be required.
