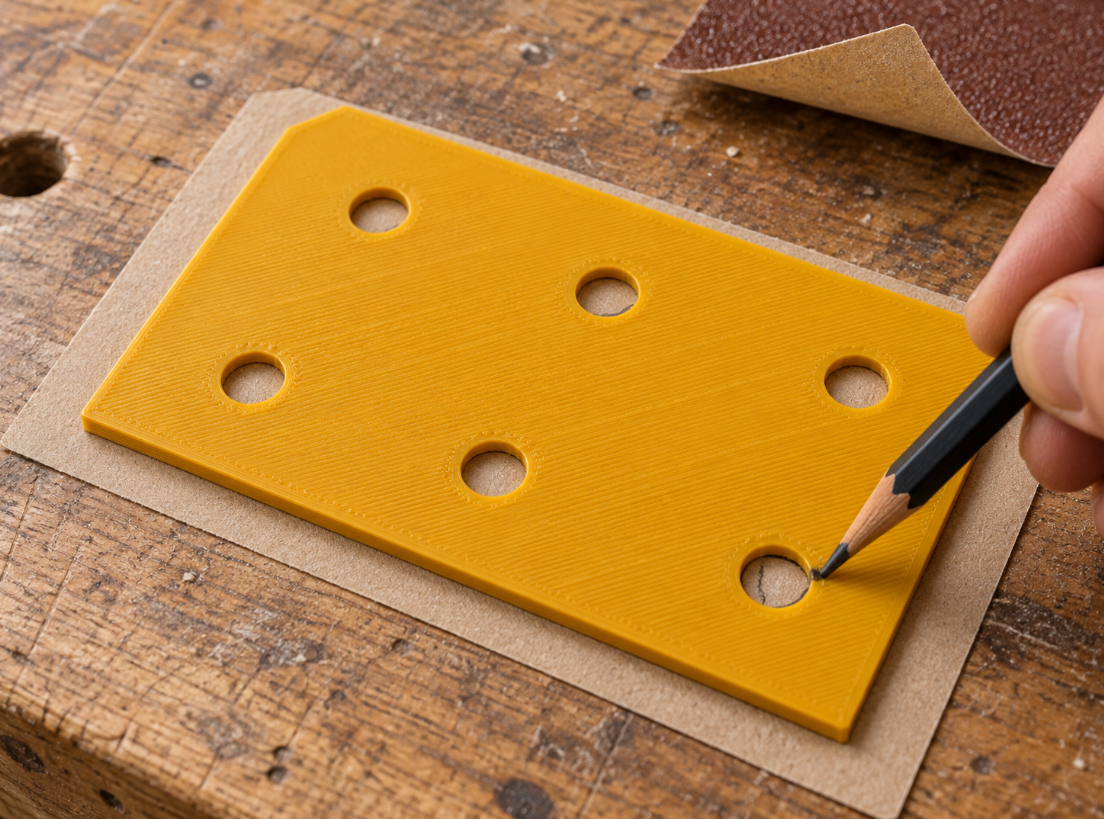

Custom sanding sheet hole-marking grid template

Name: Custom sanding sheet hole-marking grid template
Brand: BuildYour3D
SKU: schleifpapier_lochschablone
Price: 3.66 EUR
Availability: InStock

Mark extraction holes on rectangular sanding paper: set sheet size, rows, columns and spacing. Designed for regular centred grids of equal-size holes.

0 Likes

★★★★★

0.0/5 · 0 Ratings

🧩 Configure now ← Back to category

parameters

9 adjustable

Variants

0 ideas

The flat template transfers a regular hole grid to the back of a cut sanding sheet. Rows and columns are centred on the sheet. One chamfered corner identifies orientation. What you can customise: Adjustable: Sanding sheet length. Adjustable: Sanding sheet width. Adjustable: Template thickness. How to measure: 1. Measure cut sheet size and actual extraction pattern with the sander disconnected. 2. Record common hole diameter, counts and centre pitches in both directions. 3. Confirm a regular centred pattern; arbitrary individual positions are not supported. Assembly and trial fitting: 1. Print flat and deburr openings. 2. Align edges on the sheet backing and trace the circles. 3. Remove, punch holes cleanly elsewhere and check alignment on the sanding plate. 3D printing notes: PLA or PETG flat, four walls and solid skins. Check flatness and actual hole centres. Fit and included geometry: Marking only. Not a punch or a component for a running sander. Irregular multi-hole systems are not represented. Additional items required: Unpunched abrasive sheet, pencil and separate hole punch with backing are additional.
