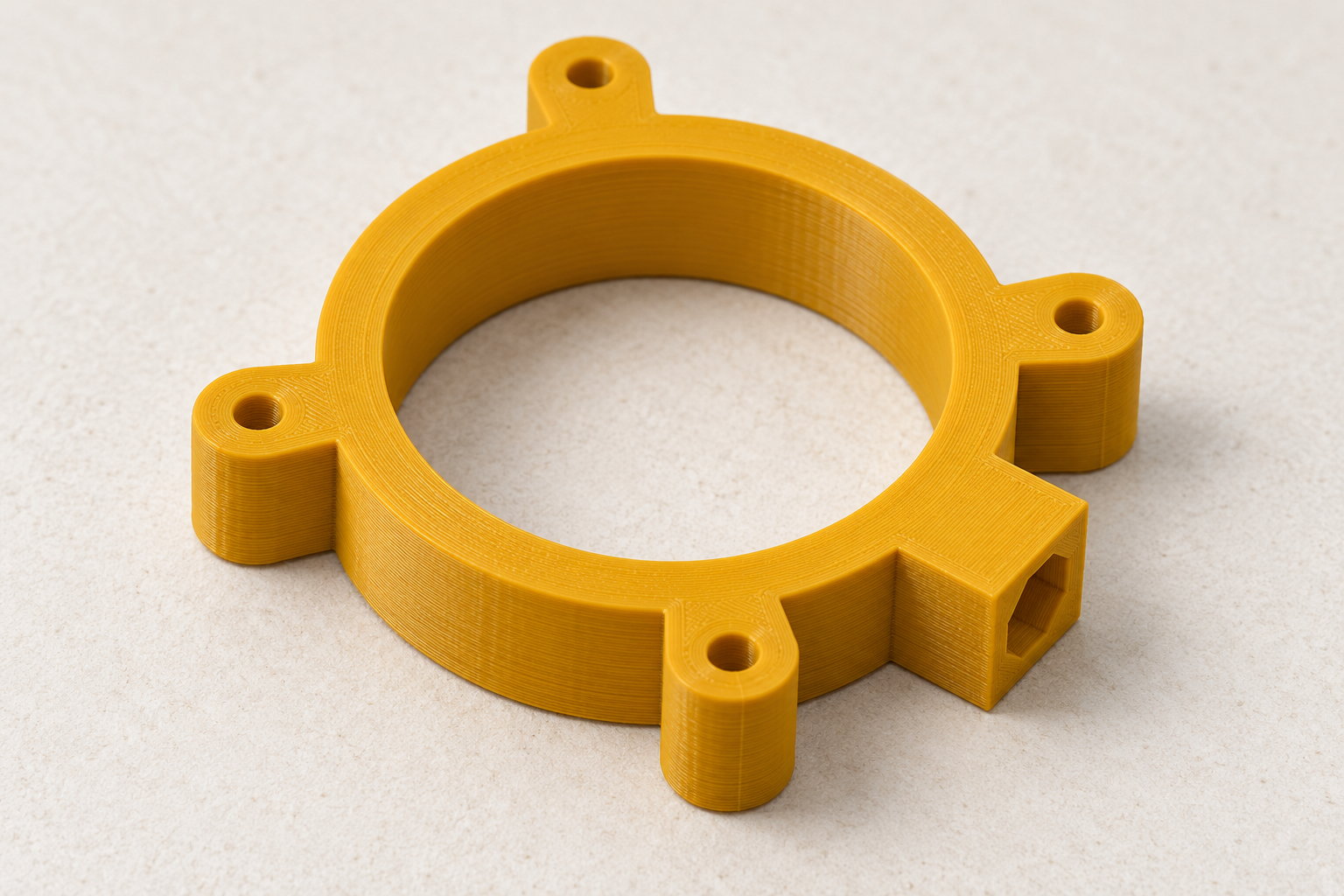

Yellow microphone ring with four cord eyes and nut pocket — AI visualisation.

Adapter

Microphone shock mount inner ring for separate cords

Name: Microphone shock mount inner ring for separate cords
Brand: BuildYour3D
SKU: mikrofonspinnen_innenring
Price: 3.66 EUR
Availability: InStock

Replace a shock mount inner ring: adapt diameter, height, cord holes and clamp screw. Reuse the outer frame and add separate soft protective padding.

0 Likes

★★★★★

0.0/5 · 0 Ratings

🧩 Configure now ← Back to category

parameters

6 adjustable

Variants

0 ideas

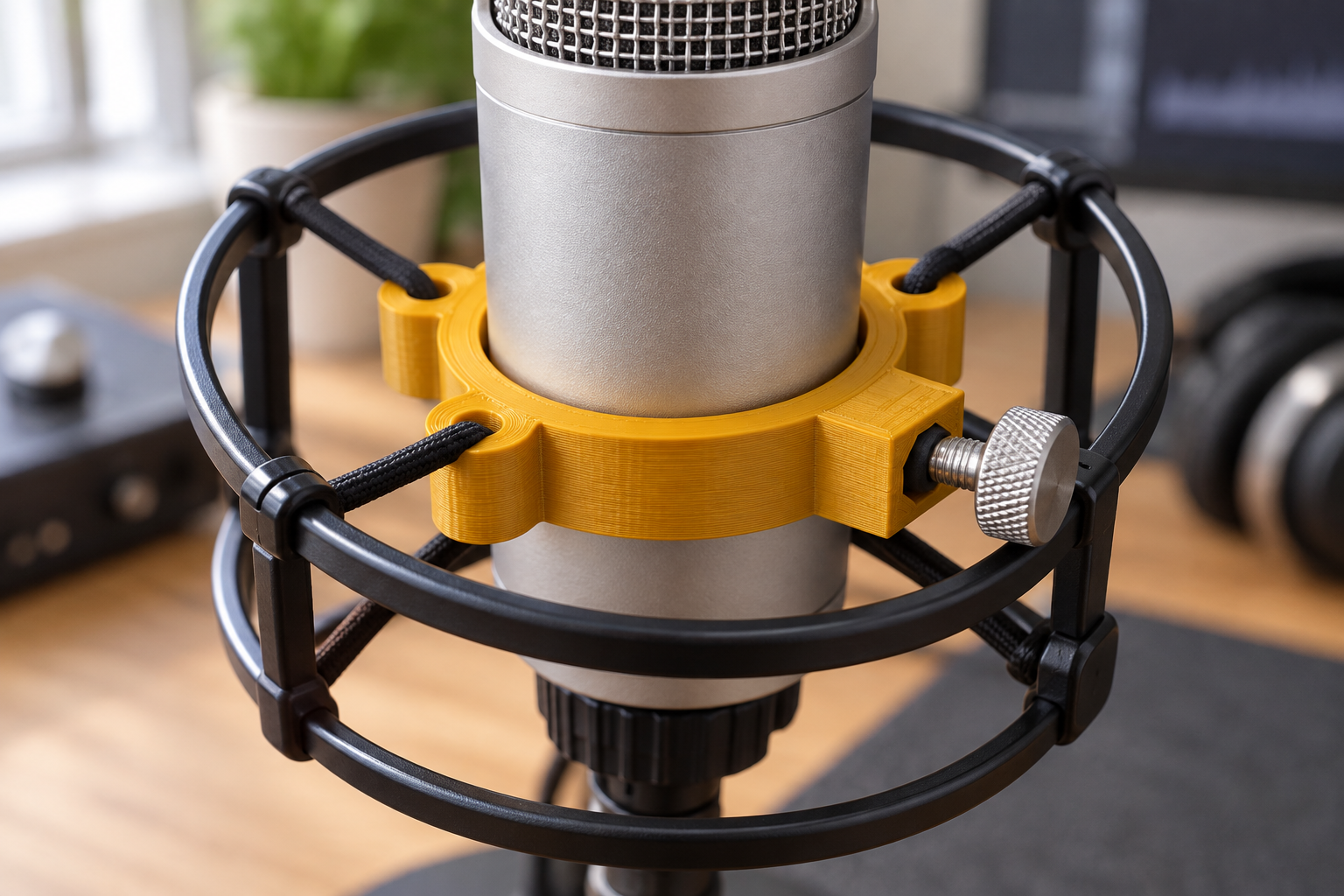

Does a different microphone diameter no longer fit the mount? This inner ring combines four closed cord eyelets with a radial clamp screw mount. A separate soft liner sits between the microphone and ring. What you can customise: Customisable: Clear inside diameter including liner. Customisable: Radial ring wall. Customisable: Ring height. How to measure: 1. Measure the microphone at the clamp position; add liner thickness on both sides and fitting allowance. 2. The outer cage must clear the ring and eyelets extending 10 mm radially; allow space for the screw head. 3. Measure cord, screw and nut; the pocket is 3 mm deep, defaulting to 7.2 mm across flats for an M4 nut. Assembly and trial fitting: 1. Retain the metal nut; the screw must bear on the microphone only through a separate soft pad. 2. Thread four suitable elastic cords through the eyes and attach to the existing cage. Test retention low over a soft surface. 3D printing notes: PETG, ring flat on bed, about 0.2 mm layers and five walls. Inspect and finish the horizontal screw bore and nut pocket as needed. Fit and included geometry: Inner ring only; outer cage, cords and padding are separate. Vibration isolation and load capacity untested. Not for overhead suspension.

🧩 Configure now

Recommendations

Best from Adapter

View all →

Custom two-lug bayonet dust hose adapter

Connect a dust hose to an existing bayonet socket: customise the spigot, insertion length and two opposed lugs to the measured connector geometry.

Parametric Aluminum Profile Slot Adapter Plate

Customizable mounting plate for 2020, 3030 and 4040 aluminum extrusion profiles.

Custom large-format camera lens board

Fit a lens to a compatible large-format camera: configure board dimensions, rear register and lens opening, with an adjustable vertical hole offset.

Parametric Cabinet Hinge Repair Adapter Plate

Custom repair plate for damaged or torn-out cabinet hinges.

Parametric Cable Conduit Splitter

Customizable Y adapter for splitting cable conduits, cable ducts and protective tubes.

Parametric Cable Grommet with Screw Flange

Customizable cable passthrough with round flange and four screw holes.

FAQ

Frequently asked questions

What is Configurable 3D component intended for?

Configurable 3D component is a configurable model in the Adapter category. When an off-the-shelf part does not fit, configure this parametric configurable 3d component for your project: adjust the dimensions, check the preview, download the STL or order the 3D… It is suitable as a starting point for 3D printing or technical review.

Which dimensions can I adjust for Configurable 3D component?

The available input fields define the dimensions of the generated model, for example Inner diameter, Wall thickness, Height, Specific dimension. Please check the preview and the displayed overall dimensions before ordering.

Is the STL generated from my inputs?

Yes. The STL is generated from the entered parameters and prepared for download or email delivery after payment.

Can I open the STL in Bambu Studio, Cura or PrusaSlicer?

The generated STL is suitable as a starting point for common slicers. Please review orientation, scale, material and print settings in your slicer software.

Do I need to check dimensions and tolerances before buying?

Yes, please check dimensions before ordering. Fit, strength and tolerances depend on material and print settings; the preview and overall dimensions help with verification.

Which material is suitable for Configurable 3D component?

PLA is useful for samples and simple parts, PETG for tougher applications and ASA for outdoor or higher-temperature use. Load, tolerance and print orientation matter.

Can I download Configurable 3D component as an STL or order it printed?

Yes. After configuration you can use the generated model for STL download or continue to the 3D printing order flow with price calculation.

What are typical uses for Configurable 3D component?

Typical uses include custom dimensions, repairs, prototypes and mounting aids in the Adapter category. For functional parts, always verify load and fit in the final application.
