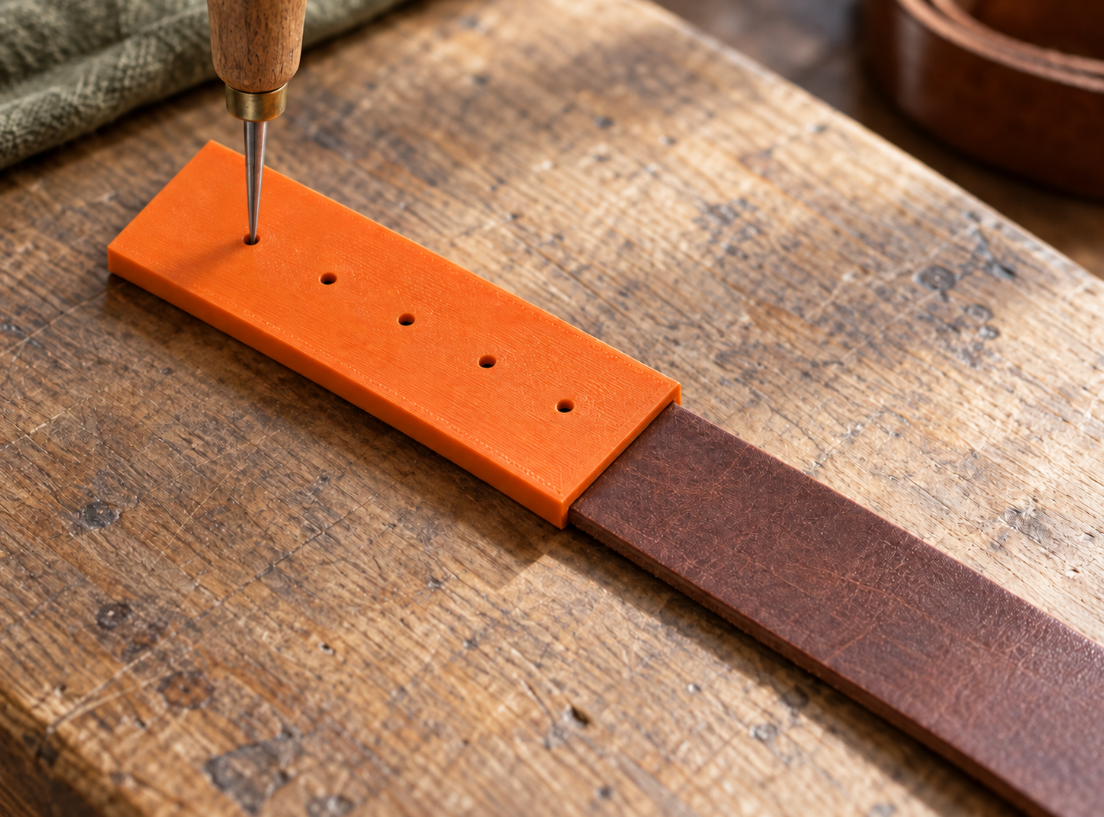

Custom leather strap hole-marking template

Name: Custom leather strap hole-marking template
Brand: BuildYour3D
SKU: lederriemen_lochlehre
Price: 3.66 EUR
Availability: InStock

Repeat hole centres on leather straps: configure width, hole count, pitch and first position. With two side fences and an end stop for square strap ends.

0 Likes

★★★★★

0.0/5 · 0 Ratings

🧩 Configure now ← Back to category

parameters

8 adjustable

Variants

0 ideas

The flipped template locates a straight strap on three sides. Small openings transfer hole centres with an awl or fine tip. Remove the template before punching the actual holes. What you can customise: Adjustable: Clear strap width with fit. Adjustable: Number of marking holes. Adjustable: Adjacent hole centre spacing. How to measure: 1. Measure strap width with small clearance; a straight uniform strip is required. 2. Set first centre from the square strap end, count and centre spacing. 3. Keep fence height no greater than leather thickness. Assembly and trial fitting: 1. Print fences upward and smooth the edges. 2. Flip onto the strap and locate its end against the stop. 3. Mark centres lightly, remove and punch separately on a suitable backing. 3D printing notes: PETG or PLA, four walls and 0.2 mm layers. Trial-print the small marking hole. Fit and included geometry: Marking aid only, not a striking, drilling or cutting guide. For straight uniform straps with a square reference end. Additional items required: Leather strap, fine marking tip and separate punch with backing are additional.
