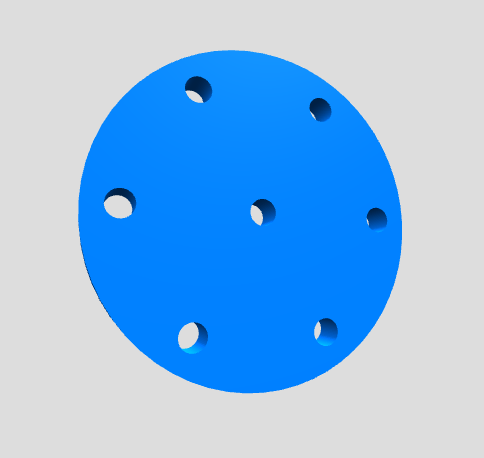

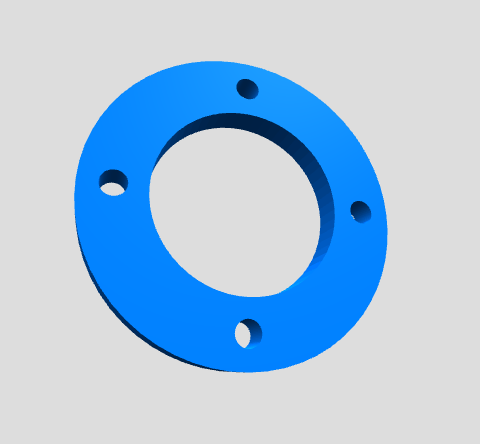

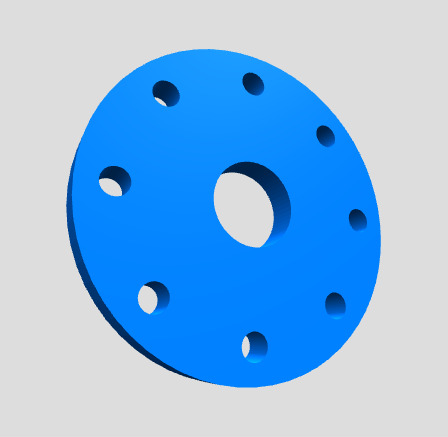

Flange

Flange is a configurable drilling plate, template or adapter plate for repeatable drilling patterns, mounting plates, positioning aids, flanges and workshop templates. It is based on the German source product data and uses the actual model parameters instead of repeated generic filler text.

In the configurator you adjust Diameter, Thickness and Hole diameter and check the live 3D preview before continuing. You can use the generated model for STL download or calculate a 3D printing price for production.

The configurable hole pattern supports repeatable work and clear positioning without manual layout every time.

Configurable options

• Hole dimensions and spacing can be adapted to the application.
