Custom Pipe Elbow Configurator – for Hydraulics & Piping Systems
Configure a custom pipe elbow online - inner and outer diameter, angle, and bend length freely adjustable. For hydraulic lines, piping systems, and special sizes, no CAD needed.
🔍 Configure a custom pipe elbow online
Looking for a pipe elbow in an angle or diameter that isn't sold off the shelf? With our online configurator you create a one-piece elbow with no straight end sections, built exactly to your dimensions - inner and outer diameter, angle, and bend length are all adjustable.
- Enter the inner and outer diameter.
- Set the angle and bend length.

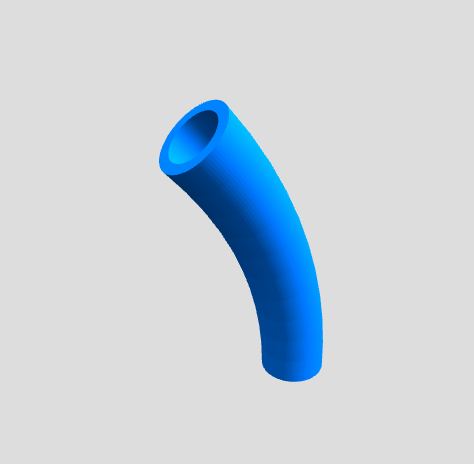

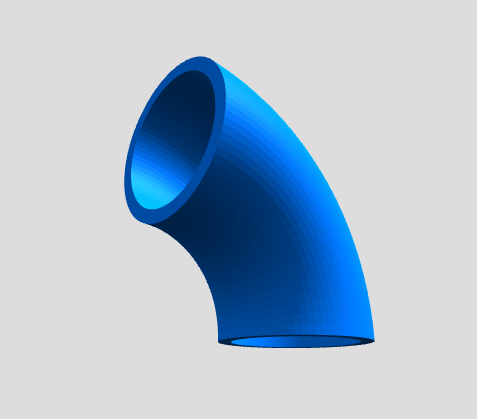

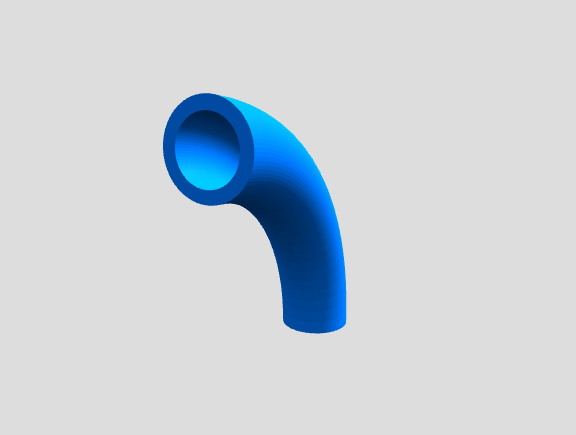

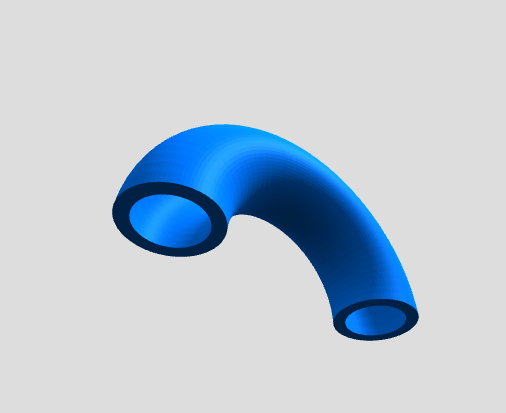

- Check the 3D preview.
- Get an instant price and order directly.
Why order a custom pipe elbow?
Standard pipe elbows from suppliers usually only come in fixed angles like 45° or 90° and in standardized diameters. For special sizes, repairs on existing hydraulic or piping systems, or custom machine building, the right elbow is often simply not available. With our parametric pipe elbow configurator you set the inner diameter, outer diameter, angle in degrees, and the bend length along the centerline yourself - the bend radius is calculated automatically for a smooth, even curve.
Bend a pipe online - no bending machine required
Instead of having a stainless steel pipe bent to order or commissioning a pipe bending machine, configure the elbow directly online and have it produced with 3D printing. This is especially useful for prototypes, small batches, spare parts, and applications where a metal bent part isn't strictly required.
Applications: hydraulics, piping systems, and machine building
The one-piece elbow without straight end sections is suited for pipe and hose systems in hydraulic and technical applications, for custom-made hydraulic lines, as an adapter or transition piece, and as a mounting bracket or functional prototype in fluid engineering.
Your benefits
- ✅ Configure a pipe elbow to your exact dimensions
- ✅ Inner and outer diameter freely selectable
- ✅ Angle and bend length individually adjustable
- ✅ No CAD skills required
- ✅ Instant price calculation
- ✅ Download as STL or order directly with 3D printing
Matching piping system parts from the configurator
Alongside the pipe elbow, our hydraulics category offers other parametric components for your piping system: pipe connectors, reducers, threaded couplings, screw plugs, and adapters - all individually configurable and orderable as 3D-printed parts.
What material should I use for a pipe elbow?
PLA is suitable for mock-ups and simple parts, PETG for more robust applications, and ASA for outdoor use or higher temperature loads. The right material choice depends on the load, tolerance, and print orientation of the specific part.
FAQ
Can I order a pipe elbow to my own custom dimensions?
Yes. In the configurator you set the inner diameter, outer diameter, angle, and bend length yourself, and the elbow is produced to fit exactly.
Is the STL generated from my input values?
Yes. The STL is generated from the parameters you enter and made available for download or ordering once configured.
Can I download the pipe elbow as an STL or order it printed directly?
Yes. Once configured, you can use the model for STL download or order the 3D print directly.
What are typical applications for a custom pipe elbow?
Common uses include special sizes, repairs, prototypes, and mounting aids in hydraulics as well as custom pipe and line systems.
Do I need to check dimensions and tolerances before ordering?
Yes, please check dimensions before ordering. Fit, strength, and tolerances depend on material and print settings.
Configure your custom pipe elbow now
Enter the diameter, angle, and bend length, and order your custom pipe elbow directly with 3D printing.
