# Configure Custom Union Nuts Online – Create Rare Thread Sizes Without CAD

Finding the correct union nut is often more difficult than expected. Older machines, hydraulic systems and custom pipe connections frequently use uncommon thread sizes that are no longer available on the market.

That is exactly why the parametric union nut configurator from buildyour3d.com was developed.

With the concept **“Your dimensions. Your model. No CAD required.”**, custom union nuts can be configured directly in the browser and generated as STL files without complicated CAD software.

Cannot Find the Right Thread Size? Here Is the Solution.

Many users face the same problem:

- thread size no longer available

- replacement fitting discontinued

- uncommon hydraulic connection

- damaged plastic union nut

- pipe diameter does not match standard parts

- manufacturer no longer provides spare parts

This is especially common in:

- hydraulics

- pneumatics

- water systems

- workshop equipment

- industrial machinery

- irrigation systems

- DIY technical projects

Instead of searching endlessly for replacement parts, users can now configure their own union nut online.

Configure a Union Nut Online Instead of Searching for Spare Parts

The configurator simplifies the entire process.

Steps:

1. Select thread size

2. Enter pipe diameter

3. Define total length

4. Check the live 3D preview

5. Generate the STL file

The preview updates directly in the browser after every parameter change.

Important Parameters Explained

Only a few measurements are required to create a functional union nut.

Thread Size (Inch)

The thread size defines the connection standard of the fitting.

Typical sizes:

- G1/4

- G3/8

- G1/2

- G3/4

- G1

The selected thread must match the existing connection.

Older machines and technical systems often use thread standards that are difficult to source today.

Pipe Diameter / Free Inner Bore

This parameter defines:

- inner clearance

- pipe insertion diameter

- hose or tube fitment

Important:

The diameter should be measured accurately using calipers.

Overall Length of the Union Nut

The total length affects:

- thread engagement

- stability

- installation space

- mechanical strength

Depending on the application, a longer nut may improve durability.

Measure and Verify the Part Directly in the Browser

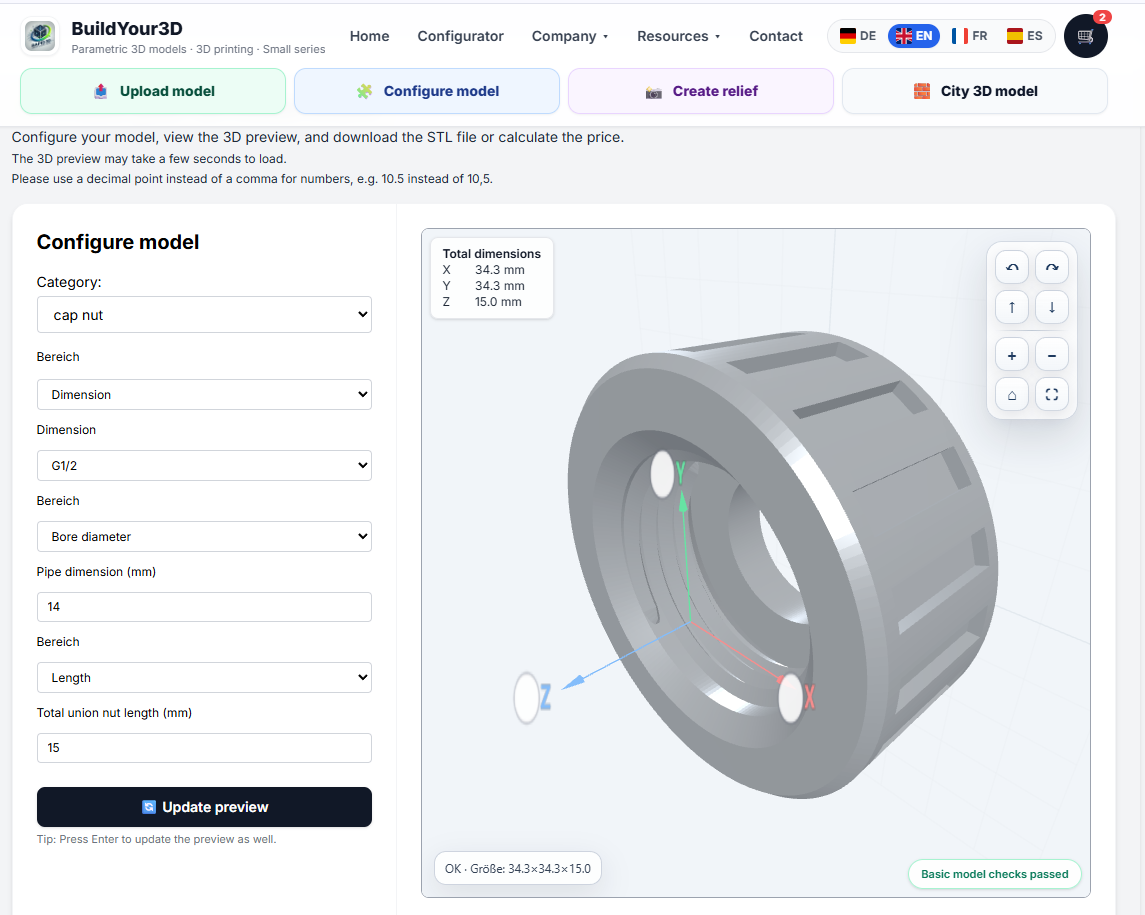

The integrated 3D viewer already displays:

- overall X/Y/Z dimensions

- technical measurement lines

- coordinate system

- material preview

- rotation and zoom

- live geometry updates

This allows users to verify dimensions before printing or manufacturing.

Perfect for Repairs and Technical Custom Solutions

The configurator is ideal for:

- discontinued spare parts

- rare thread sizes

- custom pipe adapters

- workshop solutions

- machine repairs

- technical prototypes

- hydraulic and pneumatic systems

Custom STL generation often saves significant time and cost.

Generate STL Files Automatically

After entering the parameters, the configurator automatically generates a custom STL file.

The STL model can then be:

- 3D printed locally

- sent to a printing service

- archived for future repairs

Compatible with:

- Bambu Studio

- Cura

- PrusaSlicer

- OrcaSlicer

- Simplify3D

Why Parametric Thread and Fitting Configurators Are Becoming More Important

More users are searching for:

- union nut STL

- hydraulic fitting adapter

- create custom thread online

- replacement fitting 3D print

- pipe connector STL

- thread adapter without CAD

- parametric fitting generator

The configurator was built specifically to solve these problems:

creating technical replacement parts quickly without complex CAD workflows.

Important Measuring Tips

For properly fitting threaded connections, users should carefully verify:

- thread size

- outer diameter

- inner diameter

- thread type

- total length

- wall thickness

Even small dimensional deviations can affect fit and sealing performance.

Conclusion

The union nut configurator from buildyour3d.com makes it easy to create custom threaded fittings and technical replacement parts online.

Perfect for:

- repairs

- old machinery

- discontinued parts

- custom dimensions

- technical DIY projects

Simply enter the dimensions, review the preview and generate a custom STL model.

**Your dimensions. Your model. No CAD required.**
