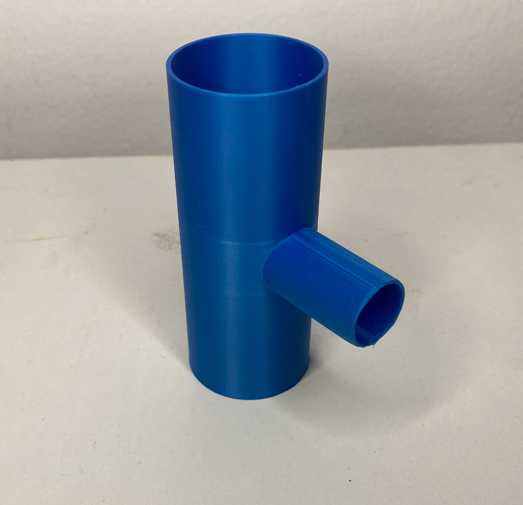

Custom T-Piece Configurator – Pipe Tee Fitting with Individual Diameter
Configure a custom T-piece online - diameter and length for the main pipe and branch set separately, including reducing tees. For hydraulics, piping systems, and special sizes, no CAD needed.
🔍 Configure a custom T-piece online
Looking for a T-piece pipe fitting where the main pipe and branch don't fit a standard size? With our online configurator you create a custom tee fitting where you set the diameter and length for the main pipe and the branch separately - built exactly for your installation space.
- Enter the length and diameter of the main pipe (X).
- Enter the length and diameter of the branch (Z).
- Check the 3D preview.
- Get an instant price and order directly.
Why a custom T-piece instead of catalog fittings?
T-piece fittings from hardware stores or suppliers are usually only available in standardized DN sizes, with the same diameter for the main pipe and the branch. For special sizes, reduced branches, repairs on existing systems, or custom machine building, an off-the-shelf part rarely fits. Our parametric T-piece configurator lets you set the inner and outer diameter as well as the length for the main pipe and the branch completely independently - including reducing tees with different diameters per direction.
T-piece with different diameters: reducing branches
A common special case is the reducing tee, where the branch has a smaller diameter than the main pipe. Standard fittings only cover a few fixed combinations for this. In the configurator you define the inner diameter for the flow cross-section and the outer diameter for the fit completely freely - separately for the main pipe and the branch.
Adjust the branch length to your installation space
In tight spaces or with special enclosures, the standard length of a branch is often too long or too short. The branch length can be adjusted independently of the main pipe to fit the available installation space, so the T-piece fits cleanly even in confined assemblies.
Applications for a custom T-piece
Typical uses include pipe and hose systems in hydraulics, adapter or transition pieces between different diameters, mounting brackets, and functional prototypes in fluid engineering. Configuring a custom tee is also a fast solution as a spare part for a damaged or discontinued fitting.
Your benefits
- ✅ T-piece with separate dimensions for main pipe and branch
- ✅ Inner and outer diameter freely combinable, including reducing
- ✅ Branch length matched to your installation space
- ✅ No CAD skills required
- ✅ Instant price calculation
- ✅ Download as STL or order directly with 3D printing
Matching piping system parts from the configurator
Alongside the T-piece, our hydraulics category offers other parametric components: pipe elbows, 3-way corner connectors, double-threaded adapters, hollow spindles, and screw plugs - all individually configurable and orderable as 3D-printed parts.
What material should I use for a T-piece?
PLA is suitable for mock-ups and simple parts, PETG for more robust applications, and ASA for outdoor use or higher temperature loads. The right material choice depends on the load, tolerance, and print orientation of the specific part.
FAQ
Can I order a T-piece with different diameters for the main pipe and branch?
Yes. In the configurator you set the inner and outer diameter for the main pipe and the branch separately, including reducing combinations.
Can I adjust the branch length independently of the main pipe?
Yes. The branch length can be set separately, so the T-piece fits even in tight installation situations.
Is the STL generated from my input values?
Yes. The STL is generated from the parameters you enter and made available for download or ordering once configured.
Can I download the T-piece as an STL or order it printed directly?
Yes. Once configured, you can use the model for STL download or order the 3D print directly.
Do I need to check dimensions and tolerances before ordering?
Yes, please check dimensions before ordering. Fit, strength, and tolerances depend on material and print settings.
Configure your custom T-piece now
Enter separate dimensions for the main pipe and the branch, and order your custom T-piece directly with 3D printing.
