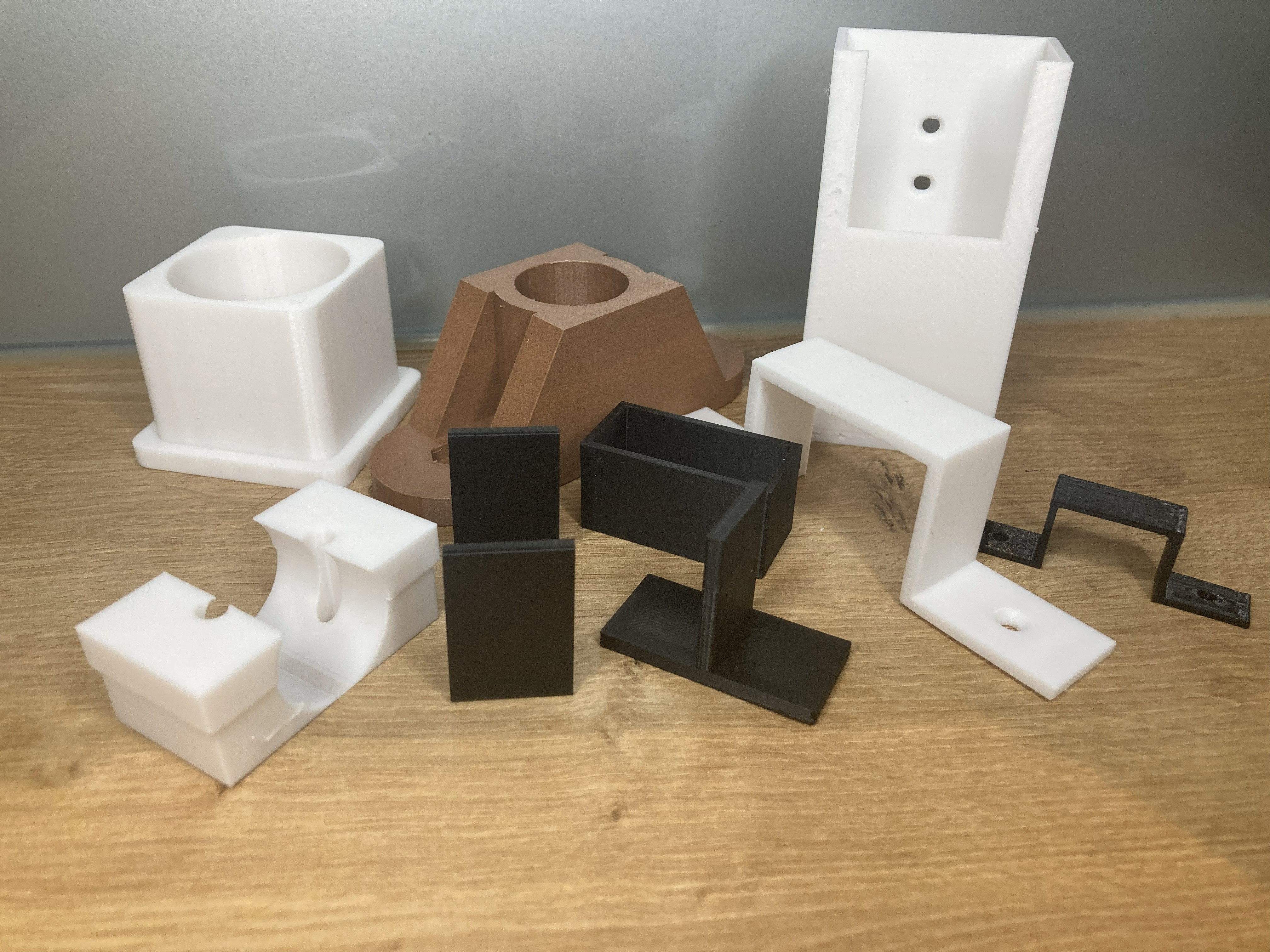

Custom mounting profiles instead of standard parts

In many projects, standard profiles or brackets are almost right, but not perfect. The hole spacing is wrong, the length does not match, the wall thickness is too thin or the profile shape is not suitable for the assembly. A <strong>custom mounting profile</strong> solves exactly this problem.

Instead of redesigning your entire construction around a standard component, you can configure a part that matches your dimensions and application.

Which mounting profiles and parts can be configured?

• L-profiles
• U-profiles
• T-profiles
• Z-profiles
• Angle brackets
• Mounting brackets
• Pipe holders
• Cable holders
• Profile connectors
• Universal connectors
• DIN rail holders
• Repair plates
• Spacer elements
• Custom plastic brackets
• Functional mounting parts

Typical applications

Custom mounting profiles are used wherever components need to be attached, supported, aligned or connected. They are especially useful when a standard bracket or profile does not fit the exact geometry of the project.

• Mechanical engineering
• Machine guards and covers
• Workshop repairs
• Prototype construction
• Jigs and fixtures
• Electronics enclosures
• Sensor mounting
• Cable management
• Pipe and hose guidance
• Furniture repair
• DIY projects
• Industrial replacement parts
• Small batch production

Custom L-profiles and angle brackets

L-profiles and angle brackets are among the most common mounting parts. They are used to connect panels, support frames, mount sensors, attach covers or reinforce corners.

With a configurable L-profile, you can define the length, width, thickness and hole positions according to your project. This makes it easier to create a clean, functional and precise assembly.

Custom U-profiles and guide rails

U-profiles are useful when a part needs to be guided, held or protected from multiple sides. They can be used as simple rails, covers, holders or mounting channels.

A custom U-profile is especially practical when the internal width, wall thickness or length must match an existing component exactly.

Pipe holders and cable holders

Pipe holders and cable holders are often needed in workshops, machines and technical installations. Standard holders are not always available in the right diameter or with the correct mounting geometry.

A custom 3D printed holder can be adapted to the exact pipe diameter, cable bundle, mounting surface and screw pattern.

Profile connectors and universal brackets

Profile connectors are used to join structural elements, frames, rails and brackets. When the geometry is unusual, a custom connector can save time and avoid unnecessary redesign work.

Universal brackets are also useful for prototypes, temporary setups and repair work because they can be adapted quickly to different mounting situations.

Why use 3D printing for custom mounting profiles?

3D printing is ideal for custom mounting profiles because no expensive tooling is required. Single parts, prototypes and small batches can be manufactured quickly and economically.

• ✅ Custom dimensions
• ✅ No tooling costs
• ✅ Fast production
• ✅ Ideal for one-off parts
• ✅ Great for prototypes
• ✅ Suitable for small batches
• ✅ Complex geometries possible
• ✅ Online configuration

Which materials are suitable?

The best material depends on load, temperature, environment and required stiffness. For simple brackets, a standard plastic may be sufficient. For functional parts, engineering materials are often a better choice.

• PLA: suitable for simple visual parts and light-duty prototypes.
• PETG: robust, versatile and suitable for many functional applications.
• ASA: weather-resistant and suitable for outdoor use.
• ABS: strong technical plastic for functional components.
• PETG-CF: carbon fiber reinforced material for rigid mounting parts.
• Nylon: durable material for demanding mechanical applications.
• TPU: flexible material for vibration damping or elastic holders.

Design tips for strong mounting profiles

When configuring a mounting profile, it is important to consider the load direction, wall thickness, screw diameter and expected forces. A part that looks simple can fail if the wall is too thin or if the holes are placed too close to the edge.

• Use sufficient wall thickness for loaded parts.
• Leave enough material around screw holes.
• Avoid very thin unsupported features.
• Choose a material suitable for temperature and load.
• Use ribs or fillets for additional stiffness where possible.
• Test prototypes before using parts in critical applications.

Mounting profiles for replacement and repair

Many repairs fail because a small plastic bracket, holder or profile is no longer available as a spare part. With a configurable profile, you can often replace broken plastic mounting parts quickly.

This is useful for machines, furniture, covers, enclosures, appliances, workshop equipment and older installations.

Mounting profiles for prototypes and product development

In product development, custom brackets and profiles are often needed before the final production method is known. 3D printing allows you to test different dimensions and mounting positions quickly.

This helps engineers and makers validate fit, function and assembly before investing in more expensive manufacturing methods.

Frequently Asked Questions

Can I configure mounting profiles without CAD?

Yes. You can create custom mounting profiles directly in the online configurator by entering the required dimensions.

Can I order only one profile?

Yes. 3D printing is ideal for single parts, prototypes and small batches because no expensive tooling is required.

Which profiles can be configured?

Typical configurable parts include L-profiles, U-profiles, T-profiles, Z-profiles, angle brackets, pipe holders, cable holders and universal connectors.

Are 3D printed mounting profiles strong enough?

That depends on the material, geometry, wall thickness and load direction. For functional parts, materials such as PETG, ASA, ABS, PETG-CF or Nylon are often suitable.

Can I use the parts outdoors?

For outdoor use, ASA is often a good choice because it offers better weather resistance than many standard plastics.

Can I upload my own STL instead?

Yes. If you already have a finished 3D model, you can upload your STL file and order professional 3D printing directly.

Are mounting profiles suitable for industrial use?

They can be suitable for prototypes, fixtures, repair parts and light to medium-duty functional applications. For safety-critical uses, the design and material should always be validated.

```
