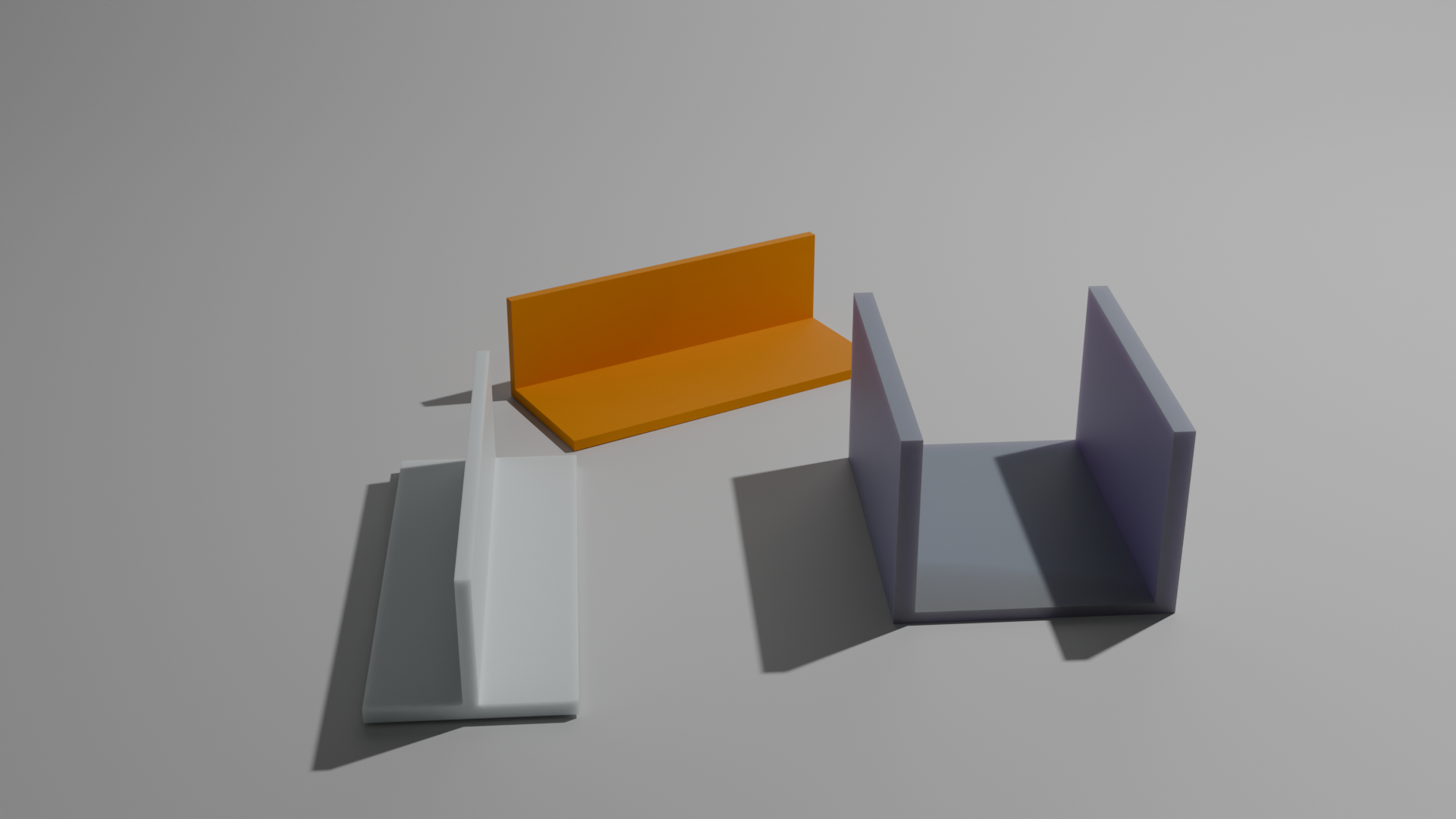

Custom L-Profile, T-Profile & U-Profile Configurator – Angle Bracket, Guide Rail & Wall Mount
Configure a custom L-profile, T-profile, or U-profile online - lengths, leg lengths, width, height, and wall thickness freely adjustable. For edge reinforcement, guide elements, and U-profile wall mounts, no CAD needed.
🔍 Configure a custom L-profile, T-profile & U-profile online
Looking for an angle profile, a T-profile as a guide element, or a U-channel to use as a wall mount - in a size you can't find at the hardware store? With three dedicated profile configurators you build L-, T-, and U-profiles to your exact dimensions, right in the browser, no CAD required.
- Choose the profile type: L-profile, T-profile, or U-profile.
- Enter length plus leg lengths, width/height, or wall and base thickness.
- Check the 3D preview.
- Get an instant price and order directly.
Custom profiles instead of fixed off-the-shelf stock
Aluminum and plastic profiles from hardware stores usually only come in a handful of fixed cross-sections and lengths. If you need an angle profile, T-profile, or U-channel for a specific build, a repair, or a jig, the exact combination of length, width, height, and wall thickness is rarely available. The three profile configurators solve that: you enter the dimensions yourself, the profile is generated to fit exactly, and it's produced with 3D printing.
Custom L-profile: angle bracket for edges and mounting
The L-profile is the classic angle bracket for edge reinforcement, corner protection, and mounting structures. In the configurator you set length, leg length X, leg length Y, and wall thickness independently - ideal for jig building, mounting aids, covers, and brackets in machine and plant environments when a standard angle profile doesn't have the right leg lengths.
Custom T-profile: guide and support element
The T-profile works as a support or guide element, especially where width and height need to match an existing slot or rail exactly. In the configurator you set length, top width, height, and wall thickness. Typical uses include machine construction, jig building, and custom adaptations where a stock T-profile isn't available in the slot width you need.
Custom U-profile: channel, guide, cover - and wall mount
The U-profile works as a channel for guides, covers, and brackets. In the configurator you set length, width, height, wall thickness, and base thickness. One especially common use case is the U-profile wall mount: cable channels, shelf edges, strips, or rails slide into a matching U-channel that's then mounted to the wall - the exact inner width determines the fit.
Your benefits
- ✅ Three profile types, one simple configuration flow
- ✅ Leg lengths, width, height, and wall thickness independently adjustable
- ✅ Exact fit for wall mounts, guides, edge protection, and jig building
- ✅ No CAD skills required
- ✅ Instant price calculation
- ✅ Download as STL or order directly with 3D printing
Typical applications
- Edge reinforcement and corner protection (L-profile)
- Guide and support elements for slots/rails (T-profile)
- Wall mounts for cable channels, strips, and rails (U-profile)
- Jig building and mounting aids
- Covers and brackets in machine building
- Repairs and custom sizes when stock parts don't fit
What material should I use for L-, T-, and U-profiles?
PLA is useful for samples and simple parts, PETG for tougher applications, and ASA for outdoor use or higher temperature exposure. The right material choice depends on the load, tolerance, and print orientation of the specific profile.
FAQ
Can I order L-, T-, and U-profiles in a custom size?
Yes. In all three configurators you set length, width/height or leg lengths, and wall thickness yourself.
Does the U-profile work as a wall mount for cable channels or strips?
Yes. With the right inner width, wall thickness, and base thickness, the U-profile can be used as a guide or wall bracket.
Is the STL generated from my input values?
Yes. The STL is generated from the parameters you enter and made available for download or ordering once configured.
Can I download the profiles as an STL or order them printed directly?
Yes. Once configured, you can use the model for STL download or order the 3D print directly.
Do I need to check dimensions and tolerances before ordering?
Yes, please check dimensions before ordering. Fit, strength, and tolerances depend on material and print settings.
